    COL5011V 20 Channels HDMI To RF Modulator 8 RF Carrier Output HD RF Modulator

    Ask Lasest Price
    Brand Name : Colable
    Model Number : COL5011V
    Price : Negotiation
    Payment Terms : T/T(Wire Transfer), Western Union etc
    Supply Ability : 500sets per Month
    Delivery Time : 2-5 working days
    • Product Details
    • Company Profile

    COL5011V 20 Channels HDMI To RF Modulator 8 RF Carrier Output HD RF Modulator


    20 Channels HDMI to RF Modulator 8 RF Carrier output HD RF Modulator COL5011V


    Description


    COL5011V Multi HDMI to RF modulator with powerful functions which includes encoding, multiplexing, and modulating. It supports 12*HDMI, 16*HDMI, 20*HDMI input, 8 Channels RF output (DVB-C,DVB-T,ISDB-T,ATSC-T can be switched freely as per customers' demands), 1000M IP output, SPTS&MPTS. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of free digital cable TV system and IPTV system.


    Key Features

    • 12 Channels, 16 channels, 20 channels HDMI input optional, 2*ASI
    • MPEG-4 AVC/H.264 Video encoding
    • 1000M IP output over UDP, RTP protocol (MPTS&SPTS)
    • 8 Channels RF output ( DVB-C, DVB-T, ATSC-T, ISDB-T, DTMB-T)
    • 2 ASI Independent output (optional) as copy of 5MPTS
    • Support “Null PKT Filter” function, PID Remapping/ PCR accurate adjusting,PID pass
    • Manage device and upgrade via WEB-NMS, easy to operate

    Specifications


    InputHDMI (12/16/20 channels optional)
    2*ASI inputs
    output8*RF output (DVB-C/DVB-T/ATSC/ISDBT)
    2*ASI output
    IP output(SPTS and MPTS)IP output over UDP and RTP protocol
    videoEncodingMPEG-4 AVC/H.264
    Resolution

    Input:1920*1080_60P, 1920*1080_60i,1920*1080_50P, 1920*1080_50i,1280*720_60P, 1280*720_50P,

    720*576_50i,720*480_60i,

    Output:1920*1080_30P,1920*1080_25P,1280*720_30P,

    1280*720_25P,720*576_25P,720*480_30P

    Bit-rate1Mbps~13Mbps(each channel)
    Rate ControlCBR
    AudioEncodingMPEG1 Layer2
    Sampling rate44.1KHz and 48Khz
    Bit-rate64kbps ,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
    Resolution24-bit
    Audio Gain0-255 Adjustable
    MultiplexingMaximum PID Remapping180 output pids per channel
    FunctionPID remapping ( automatically or manually)
    Accurate PCR adjusting
    ModulatorDVB-TRF number4 DVB-T
    StandardEN300744
    FFT mode2K
    Bandwidth6M, 7M, 8M
    ConstellationQPSK, 16QAM, 64QAM
    Guard Interval1/4, 1/8, 1/16, 1/32
    FEC1/2, 2/3, 3/4, 5/6, 7/8
    MER≥42 dB
    RF frequency50~960MHz, 1KHz step
    RFoutput level-34~ -10 dBm, 0.1db step
    DVB-CRF number4 RF output
    StandardEN300 429/ITU-T J.83A/B/C
    MER≥40db
    RF frequency50~960MHz, 1KHz step
    RFoutput level-34~-10dBm , 0.1dBm step
    Symbol Rate5.0Msps~7.0Msps,1ksps stepd
    J.83AJ.83B/J.83C
    Constellation16/32/64/128/256QAM64/256 QAM
    Bandwidth8M6M
    ATSC-TRF number4 RF output
    StandardATSC A/53
    Bandwidth6M
    Constellation8VSB
    FECRS(208 188)+Trellis
    MER≥40dB
    RF frequency50~960MHz, 1KHz step
    RFoutput level-34~-10dBm , 0.1dBm step
    ISDBTRF number4 RF output
    StandardARIB STD-B31
    Bandwidth6M
    ConstellationQPSK, 16QAM, 64QAM
    Guard Interval1/32, 1/16, 1/8, 1/4
    Transmission Mode2K
    Code rate1/2, 2/3, 3/4, 5/6, 7/8
    MER≥40dB
    RF frequency50~960MHz, 1KHz step
    RFoutput level-34~-10dBm , 0.1dBm step
    System functionNetwork management(WEB)
    Chinese and English language
    Ethernet software upgrade
    MiscellaneousDimension(W*L*H) 550mm*515mm*140mm
    weight6kg
    Environment0~45℃(work); -20~80℃(storage)
    Power requirementsAC100~240V, 50/60Hz

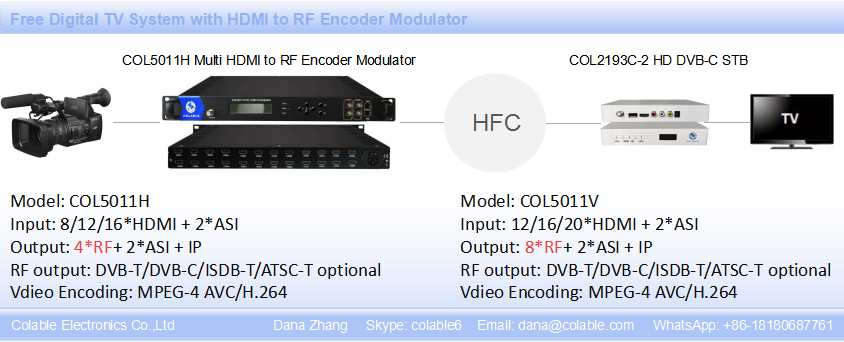

    Applications for digital tv system


    Order Reference:


    COL5011H 8/12/16*HDMI to 4*RF (DVB-C, DVB-T, ATSC-T, ISDB-T) Encoder Modulator

    COL5011V 12/16/20*HDMI to 8*RF (DVB-C, DVB-T, ATSC-T, ISDB-T) Encoder Modulator

    COL5011U-NH1 8/12/16/20/24*HDMI to RF (16*QAM, 8*DVB-T, **ATSC-T, 6*ISDB-T) Encoder Modulator
