4 CH 8 CH 12 CH HDMI H.265 HEVC IPTV Encoder

Model : COL5112HE

Outline

COL5112HE 12CH H.265/HEVC Encoder supports up to 3 H.265/HEVC encoding modules with 4 HDMI interfaces on each module. With B frame (IBBP) GOP structure and advanced compressing algorithm, this device enhances picture quality and provides ultra low bit rate to save 75% bandwidth compared with H.264/AVC and it supports up to 2160P 30Hz resolution.

It also has 1 data port (1000M/100M) for IP output (3MPTS and 12 SPTS) over UDP/RTP/RTSP protocol and 1 Network Management port to manage the 3 modules individually through 3 different IP addresses.

In conclusion, its high performance and cost-effective design make this device widely used in CATV digital head-end, business application, IPTV/OTT system, etc.

Features

• Support H.265/HEVC and H.264/AVC video encoding
• Each module support 4 HDMI input with H.265 encoding, up to 3 modules for 1U device

• Up to 2160P 30Hz resolution (Each module 2 HDMI input)
• Support HDCP 1.4 and HDCP 1.4
• Support B frame (IBBP) GOP structure

• Ultra low bit rate encoding, save 75% bandwidth

• Advanced compressing algorithm, enhance picture quality

• Support IP (1000M/100M) Output with 3MPTS and 12 SPTS over UDP/RTP/RTSP protocol

• Update device through web based NMS port

• Support LCD / keyboard operating(optional), and network management (web)

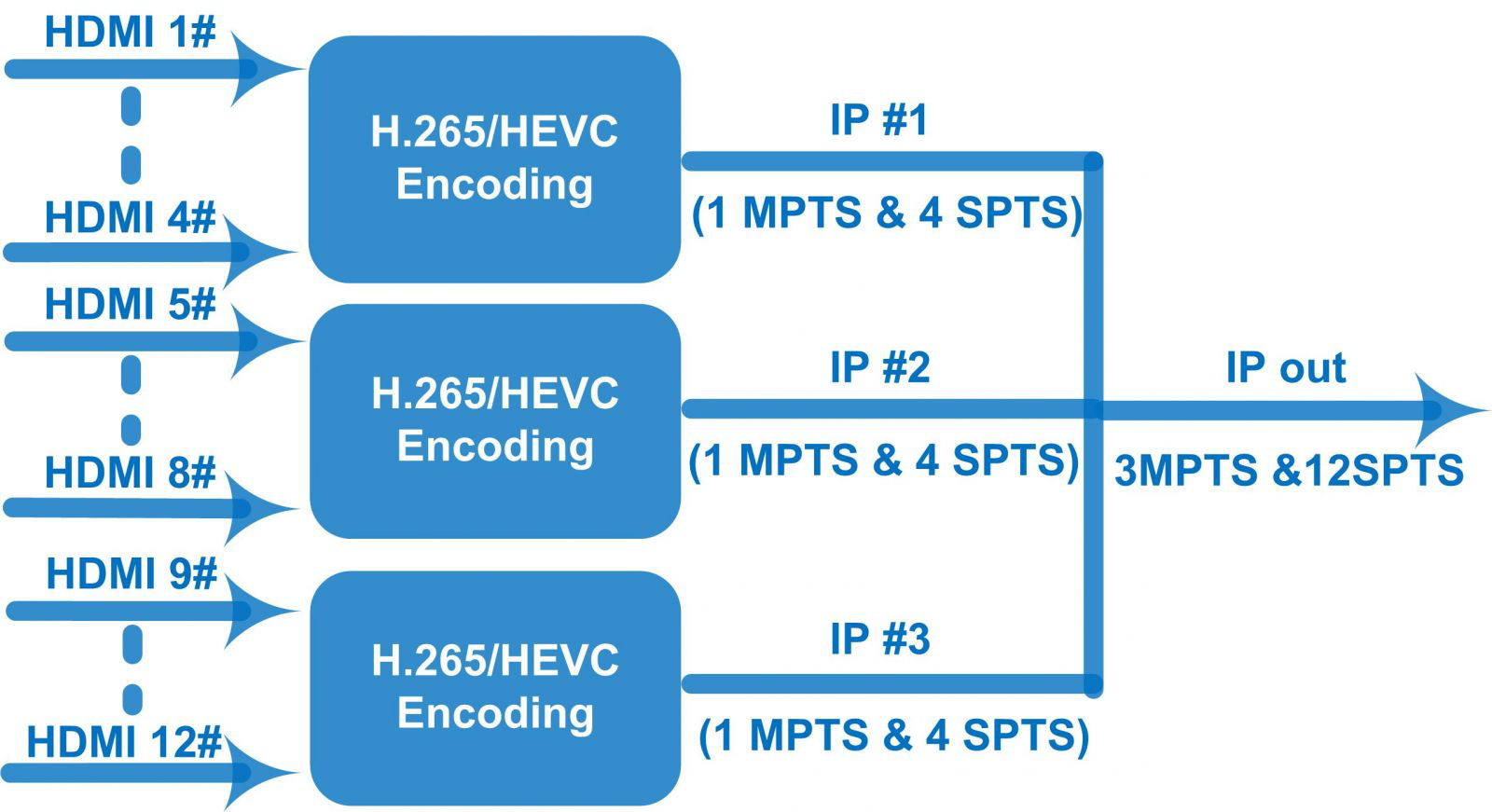

Principle Chart

Specifications for h.265 iptv encoder

Input	12×HDMI input (1.4), HDCP 1.4
Video Encoding	Encoding Format	H.265/HEVC (H.264/AVC is optional)
	Resolution	3840×2160_30P, 3840×2160_29.97P (only for H.265/HEVC encoding, and supports two channels per module) 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, 1280×720_60P, 1280×720_59.94P, 1280×720_50P
	Chroma	4:2:0
	Bitrate	0.5Mbps~20Mbps (each channel)
	Rate Control	CBR/VBR
	GOP Structure	IBBP, IPPP
	Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio Encoding	Encoding Format	MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
	Sampling rate	48KHz
	Bit-rate	48Kbps~384Kbps (each channel)
	Audio Gain	0~255
Stream output	3 MPTS and 12 SPTS (per module) output over UDP/RTP/RTSP, 1000M/100M Base-T Ethernet interface (unicast/ multicast) IP null packet filter
System	Web based management
	Chinese-English control interface
	Ethernet software upgrade
Miscellaneous	Dimension (WxLxH)	482mm×328mm×44mm
	Approx weight	5kg
	Temperature	0~45℃(work), -20~80℃(Storage)
	Power	AC 100V-220V±10%, 50/60Hz

Details for h.265 iptv encoder

Digital CATV & IPTV System

More Digital Headend Devices

Certificates
