Free to Air DVB Decoder 8 Ch Tuner(dvb-s2/t2/atsc-t)+ ASI to IP+ASI Model: COL5822CN

Outline

COL5881C Tuner Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through ASI and IP port. It can multiplex up to 8 channels Tuner and 1 ASI input to one MPTS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. Also the multiplexer can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.

Features

• Fully complying with ISO13818 and EN300 468 standard
• 8 DVB-S2/T2/ ATSC Tuner+1 ASI input ports
• ASI and IP output
• Integrated demodulating and multiplexing functions
• Support accurate PCR adjusting
• Support PID filtering, re-mapping
• Support PSI/SI rebuilding and editing
• Support MPTS over UDP, RTP/RTSP output as mirror of ASI output (RJ45)
• Huge buffer memory for saving the overflowing code stream
• Supporting to multiplex one program to all outputs
• Alarming function
• LCD/keyboard and Web-based NMS management

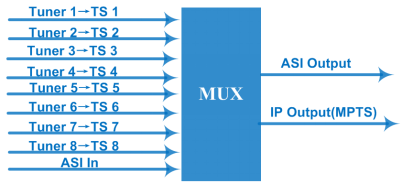

Principle Chart

Specifications

Digital CATV & IPTV System






Certificates




Exhibition
