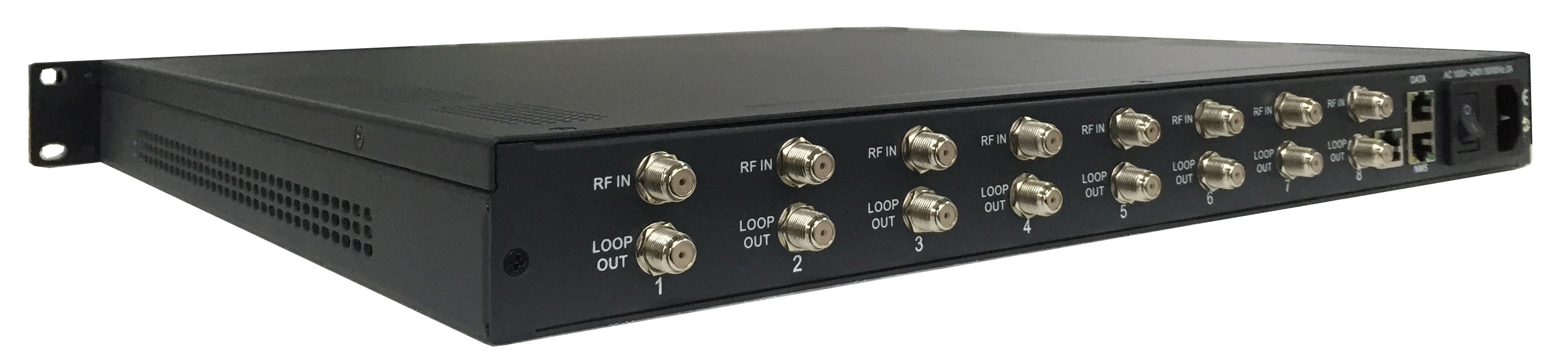

8 CH MPEG-2 MPEG-4 Tuner ASI to IP MPTS Gateway Converter Model: COL5781

Outline

COL5781 Tuner(or ASI) to IP Gateway is a head-end interface conversion device which is used for DVB and Ethernet. It is integrated with tuner demodulation(or ASI input) and gateway function, which can demodulate the signal from 8 tuners into TS and packet the TS into IP package,or directly convert the TS from ASI input into IP package, then output the IP package through different IP address and ports. It supports TS over UDP protocol. BISS function is now embedded for tuner input to descramble your tuner input programs.

Features

• Integrate demodulation, BISS descrambling and gateway function
• Support 8CH tuner(DVB-S/S2/C/T/ISDB-T/ATSC optional) input (or 8ASI input) & 8 IP output
• Support MPEG-2 and MPEG-4 TS to IP one way conversion
• Support BISS descrambling (max up to 5112 PID)-for Tuner input
• 1 GE output(support parallel 1 Gbps data output channel)
• Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
• Support 8 MPTS over UDP protocol, unicast and multicast
• Support LCD display and keyboard control
• Support NMS/SNMP/web management

Inner Principle

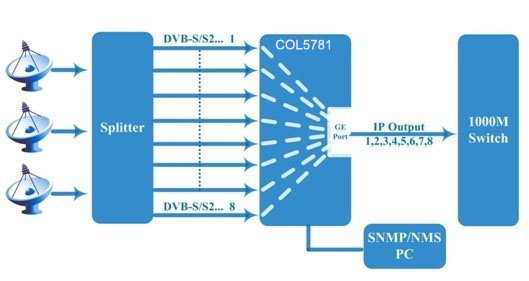

Tuner to IP Gateway

ASI to IP Gateway

Specifications

More details for DVB to MPTS Gateway

Packing for DVB ASI to IP Gateway

Digital CATV & IPTV System





Certificates
