HD SDI To ASI Encoder , 4 Channel MPEG - 4 AVC H 264 SDI To UDP Encoder COL5100D

4 Channel MPEG-4 AVC H.264 SDI to UDP Encoder

HD SDI to ASI Encoder Model: COL5100D

Outline

The COL5100D HD H.264 Encoder 4 in 1 has 4 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile code format. It is a professional HD audio & video encoding and multiplexing device with powerful functionality. This device can simultaneously encode 4 channel HD programs, moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems.

Features

Audio MPEG1 Layer 2, AAC(optional)
4 channel HDMI (Or SDI) inputs, 1 ASI input supports multiplexing
H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
Real- time effective output bit-rate monitoring
720P, 1080I HD video format support
MPTS ASI output
LCD / keyboard operating
NMS support
MPTS over UDP unicast/multicast output

Specifications

Input	4×HDMI inputs (SDI optional)
Input	1×ASI input, BNC interface
Video	Resolution	1920×1080I_60i, 1920×1080I_50i
	Resolution	1280×720_60p, 1280×720_50p
	Encoding	MPEG4 AVC/H.264 High Profile Level 4.0 for HD
	Bit-rate	0.8Mbps~20Mbps (each channel)
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Audio	Encoding	MPEG-1 Layer 2
	Sampling rate	48KHz, 44.1KHz,32KHz
	Resolution	24-bit
	Bit-rate	64Kb/s~384Kb/s each channel
Multiplexing		1×ASI input multiplexed with 4 encoding channel SPTS
Stream output		2×ASI outputs, BNC interface
Stream output		MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast)
System function		LCD/keyboard operating, NMS support Chinese-English control interface
System function		Ethernet software upgrade
General	Dimensions	480mm×456mm×45mm
	Approx weight	5Kg
	Temperature range	0~45℃(Operating), -20~80℃(Storage)
	Power Requirements	AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
	Power consumption	25W

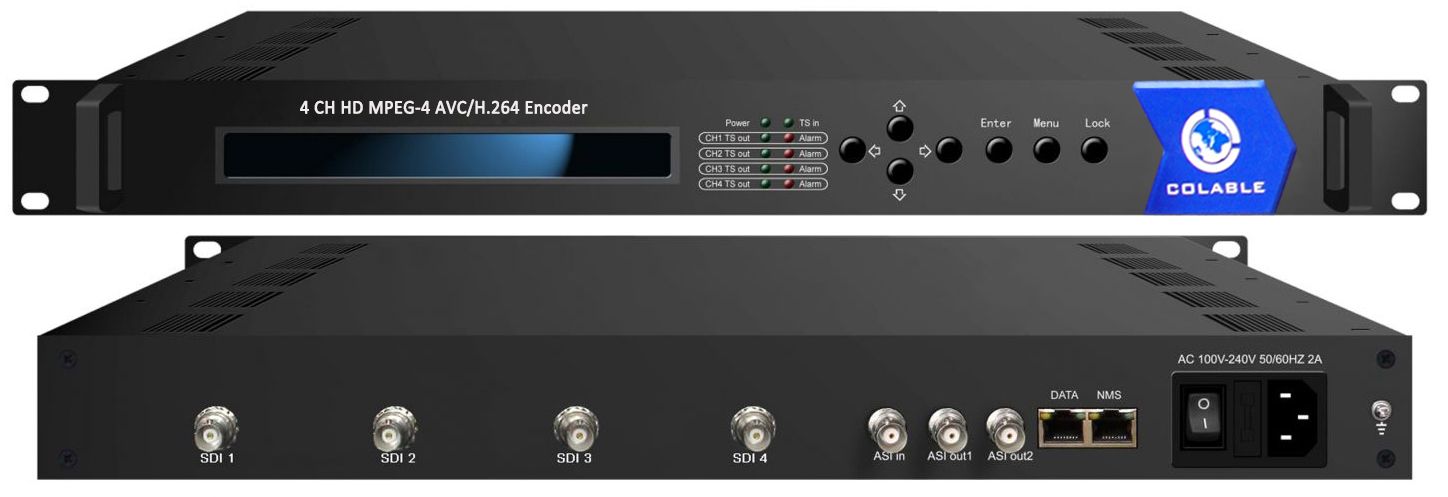

4 Channel HD SDI to ASI UDP Encoder

4 Channel HDMI to IP ASI Encoder

Packing for HD SDI to UDP Encoder

Digital CATV & IPTV System

More Digital Headend Devices

Certificates

Colable - Exhibition

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

Our experience: Standing in digital system solution more than 10 years, with reliable Team.
Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
Delivery Date: 2-5 working days
Our services: Life-long Technical support, remote assistance
Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
