8 in 1 out H.264 HDMI to DVB T Encoder Modulator
HD to COFDM RF Modulator Model: COL5011U Series
Outline
This 4/8CH HDMI Encodulator is a professional HD and SD audio &
video encoding and multiplexing device with powerful functionality.
It has 8 channels HDMI input interfaces, supporting MPEG4AVC/H.264
High Profile code format. This device can simultaneously encode 4/8
channels HD programs; Moreover, it has an ASI input and can
multiplex the input TS with the 4/8 encoded SPTS to generate a MPTS
output. Also, the PSI/SI information can be inserted into MPTS
output. In conclusion, its high integrated and cost effective
design makes the device widely used in varieties of digital
distribution systems such as digital CATV head-end, satellite &
terrestrial digital TV, etc.
Main Features
- 4/8 * HDMI HD/SD video inputs, 1 * ASI input interface
- Low Latency Encoding
- Lower Resolutions Output
- Support MPEG4 AVC/H.264 high Profile code format
- PSI/SI editing and inserting
- PID remapping and pass through
- Support CBR/VBR video bitrate mode
- Support 1080i,1080P,720P,576i,480i video format
- Outputs multiplexed MPTS, ASI
- Support IP out (UDP/RTP/RTSP protocol,SPTS/MPTS optional out)
- Support IP null packet filter
- Support Web monitoring
- Support SNMP Ethernet software upgrade
- LCD display
Specifications
| Input | 4/8HDMI inputs |
| 1×ASI input( BNC interface) |
| 1RF input |
| Video | Resolution | 1920×1080_60p 1920×1080_50p |
| 1920×1080_60i, 1920×1080_50i |
| 1280×720_60p, 1280×720_50p |
| 720×480_60i, 720×576_50i(D1) |
| 544×480_60i, 544×576_50i(3/4D1) |
| 352×480_60i, 352×576_50i(HD1) |
| 480×480_60i, 480×576_50i(2/3D1) |
| Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD and SD |
| Bit-rate | 0.8Mbps~19ps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening |
| Audio | Encoding | MPEG-1 Layer 2 |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 64Kb/s~384Kb/s each channel |
| Multiplexing | Multiplex 1ASI input and 8 channels HD encoding programs |
| Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.) |
| Low Latency Encoding |
| Lower Resolutions Output |
| IP out SPTS(UDP, RTP, RTSP),support IP out null packets filter. |
| RF Out (DVB-C 4RF, DVB-T 2RF,ISDB-T 1RF,ATSC 4RF) |
| Modulator Section |
| DVB-C | Standard | J.83A,J.83B,J.83C |
| MER | >42dB |
| RF Frequency | 30~999MHz,1KHz step |
| RF output level | (80dbuv~115dbuv),0.1db step |
| Symbol Rate | 5.0~9.0Msps |
| RF carrier | 4 carrier |
| J.83A | Constellation | 16/32/64/128/256QAM |
| bandwidth | 8M |
| J.83B | Constellation | 64QAM,256QAM |
| bandwidth | 6M |
| J.83C | Constellation | 64QAM,256QAM |
| bandwidth | 6M |
| DVB-T | Standard | EN300744 |
| Bandwidth | 6M,7M,8M |
| Constellaton | QPSK,16QAM,64QAM, |
| Code rate | 1/2,2/3,3/4,5/6,7/8. |
| Guard lnterval | 1/32,1/16.1/8,1/4 |
| Transmission Mode | 2K,8K |
| MER | ≥42dB |
| RF frequency | 30~960MHz,1KHz step |
| RF Out | COFDM DVB-T out |
| RF output level | -30~-10dbm(77~97dbuV) 0.1db step |
| ATSC-T | Standard | ATSC A/53 |
| MER | ≥42dB |
| RF frequency | 30~960MHz,1KHz step |
| RF output level | -26~10dbm(81~97dbuv), 0.1db step |
| Constellation | 8VSB |
| Standard | ARIB STB-B31 |
| Bandwidth | 6M |
| ISDB-T | Constellation | DQPSK,QPSK,16QAM,64QAM |
| Guard lnterval | 1/32,1/16,1/8.1/4 |
| Transmission Mode | 2k,4k,8k |
| MER | ≥42dB |
| RF frequency | 30~960MHz,1KHz,step |
| RF output level | -30~-10dbm (77~97 dbuv), 0.1db step |
| System function | LCD/keyboard operating, web based management software, English control interface |
| SNMP Ethernet software upgrade |
| General | Size (W×D×H) | 482mm×455mm×44.5mm |
| Approx weight | 3.5Kg |
| Temperature range | 0~45℃(Operating), -20~80℃(Storage) |
| Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Power consumption | 65W |
Order reference:
| 4 Channels | 8 Channels |
| DVB-C | COL5011U-4HC | COL5011U-8HC |
| DVB-T | COL5011U-4HT | COL5011U-8HT |
| ATSC-T | COL5011U-4HA | COL5011U-8HA |
| ISDB-T | COL5011U-4HI | COL5011U-8HI
|

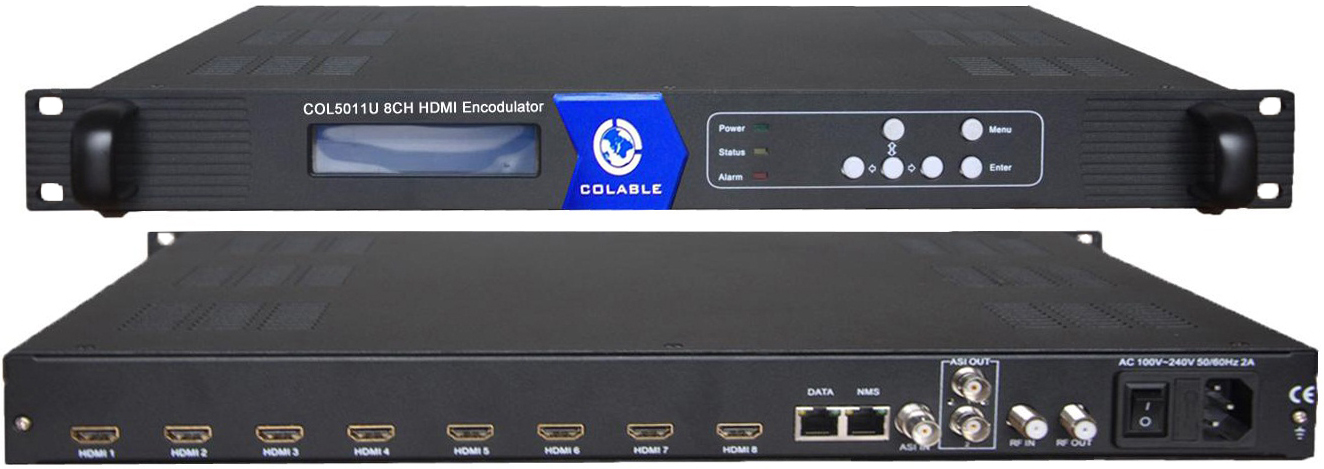

8 Channels HDMI to RF Encoder Modulator
